Thick Film Resistor

Thick Film Resistor

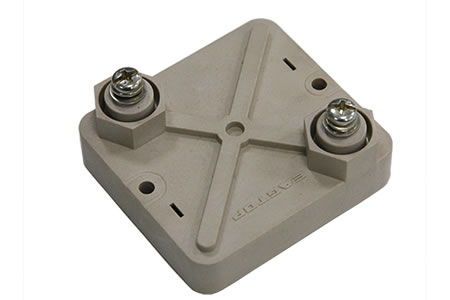

RPTF planar thick film and high-power non-inductive resistor is of high frequency and non-inductive. Water-cooling or air-cooling is needed during long-time operation, which keeps the substrate center temperature not more than 85°C. Power range is 100w ~ 800w. It is applied to Electrical equipment of power generation, power transmission, variable speed drive, etc.

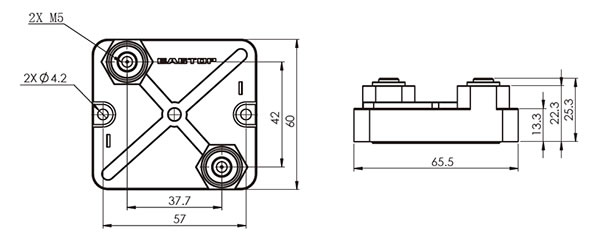

Product Size
Product Electric Parameters
Resistance range Rated power P85 °C Max. operating voltage Tolerance Temperature coefficient
0.3Ω to 100K 100W to 800W 5K 3, 5, 10 100, 200, 300
Mechanical Specifications
Material UL 94V0
Substrate Aluminum nitride
End connections M5
Tightening torque connections 2 Nm
Resistance installation torque 1.8 Nm
Weight 83g ±10%

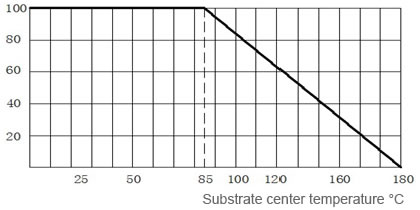

(Derating Curve)

Applicable Standards
GB/T5729-2003
IEC60115
MIL-STD-202

Performance
Property Inspection method Performance requirements
Constant humidity-heat
56 days RH95%/40 °C
ΔR≤±(0.5%R + 0.005Ω)
Temperature change
-55 °C /+125 °C ,5cycles
ΔR≤±(0.5%R + 0.005Ω)
Transient overload 1000W 10S@70 °C ΔR≤±(0.25%R + 0.005Ω)
Insulated resistance DC 1000V R≥10GΩ
Dielectric Strength AC7000V 50Hz 1min Free of breakage or flying arc
Life 1000h/Pr at 85 °C ΔR≤±(0.5%R+ 0.005Ω)
Vibration resistance MIL STD202 method 204 cond.D(10g ;5/500Hz) ΔR ≤±(0.25%R+ 0.005Ω)
Product Identification Code
RPTF 0600 6K00 9999G J
Product type Rated power 50W-800W
0020-50W
Resistance value(ohm) (Ω)indicates resistance value in
units of ohms 0R08-0.08Ω/
0032-32Ω/8K00-8KΩ
Connection G=Terminal Tolerance Resistance tolerance H=±3%
K=±10%
J=±5%
