Film Capacitor for HEV / EV Motor Control Unit

Applications
Film capacitor is applied to the motor control of new energy vehicles

Standards
IEC 61071-2007 and AEC-Q200-2010 acc. to IEC 61071-2007 and AEC-Q200-2010.

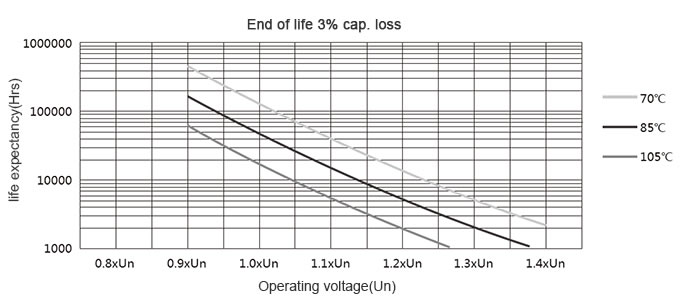

Average Lifetime Curve

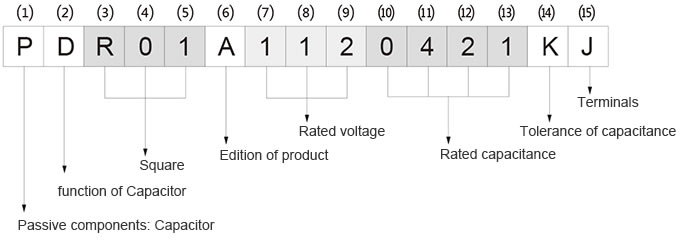

Order Coding Rule

Code	Character	Note
⑴	Internal code	P: Passive components: capacitor
⑵	Function of capacitor	A: Alternate capacitor, D: Direct capacitor
⑶⑷⑸	Diameter and order number	R: Square; ⑷⑸ Order number
⑹	Version of product	A: First version; B: Second version, etc; S: Special product
⑺⑻⑼	Rated voltage	For examples: 062=6×102=600V, 112=11×102=1100V
⑽⑾⑿⒀	Rated capacitance (unit: μF)	For examples: 0421=42×101=420μF, 1061=106×101=1060μF
⒁	Tolerance of capacitance	J=±5% ； K=±10% ；
⒂	Terminals	T: Internal thread, Z: internal stud, J: integrated type

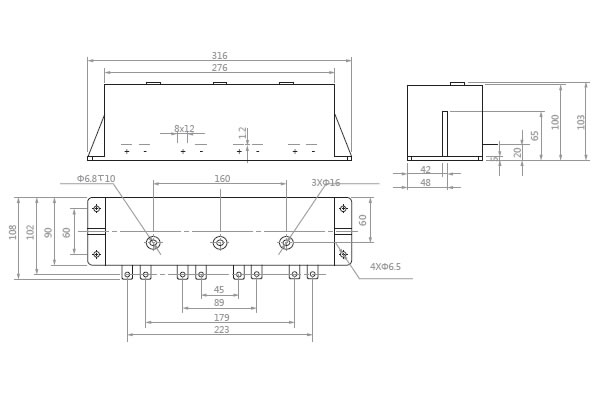

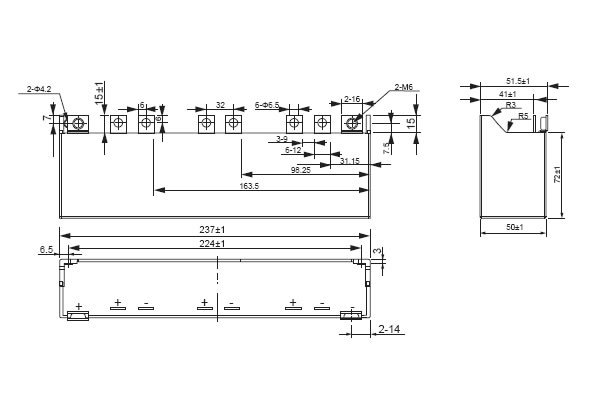

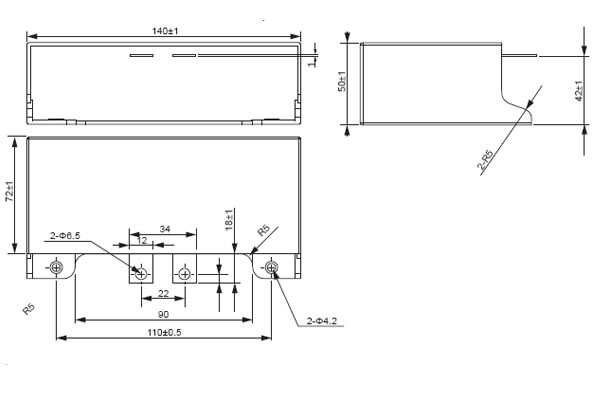

Outline Drawing

• Picture1
• Picture2
• Picture3

Ordering Code and Packing Units

HP1 Platform ­------FS200R07/FS400R07
UN Vdc	CN μF	RS mΩ	Imax A	Î kA	IS kA	WN WS	Le nH	Dimensions (L×W×H)mm	Picture	Ordering Code
450	300	1.2	80	1.2	4.8	30.3	15	140x72x50	1	PDR**A4510301KJ
450	400	1.1	80	1.2	4.8	40.5	15	140x72x50	1	PDR**A4510401KJ
450	460	0.6	80	1.4	5.6	46.5	15	140x72x50	1	PDR**A4510461KJ
HP2 Platform ­------FS400R12/FS600R07/ FS800R07
UN Vdc	CN μF	RS mΩ	Imax A	Î kA	IS kA	WN WS	Le nH	Dimensions (L×W×H)mm	Picture	Ordering Code
450	500	0.8	120	2	7	50.6	15	237x72x50	2	PDR**A4510501KJ
450	700	0.8	120	2	7	70.8	15	237x72x50	2	PDR**A4510701KJ
450	860	0.6	135	2.5	8.3	86.1	15	237x72x50	2	PDR**A4510851KJ
Customized product
UN Vdc	CN μF	RS mΩ	Imax A	Î kA	IS kA	WN WS	Le nH	Dimensions (L×W×H)mm	Picture	Ordering Code
800	800	0.6	200	4	8	256	16	316x108x103	3	PDR21A 0820801KJ
