Reactor for Explosion-Proof Inverter

Reactor for Explosion-Proof Inverter

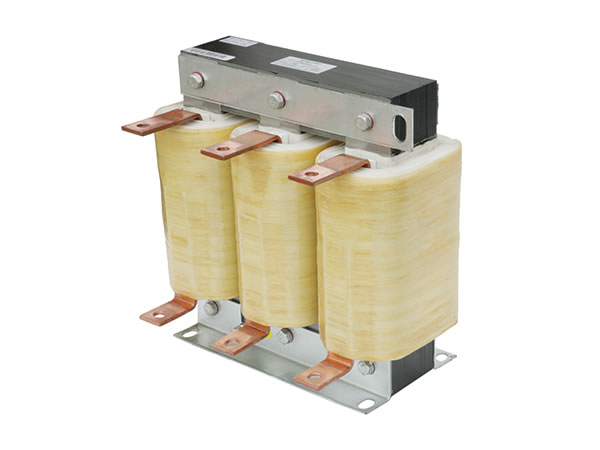

The figure shown below is an explosion proof reactor typically installed on mining equipment. Due to the harsh working conditions involved in the mining industry, the reactor used for that purpose needs to be reliable, rugged, and safe to operate. Designed with those severe operating environments in mind, EAGTOP inductor or reactor is robust and highly insulated to ensure extreme low temperature increase and minimized current leakage. The use of reactor improves the input current wave and balance degree, restrains high-order harmonics, limits inrush currents and increases system’s power factor.

Product Features
With the core made of grain-oriented cold rolled silicon steel sheets, the reactor boasts excellent high frequency performance and low core loss. Designed with low magnetic flux density, the reactor is of high linearity and powerful overload capacity. Low current density brings low loss and temperature rise. VPI process makes the reactor fully immersed in oil and the oil film thicker, which contributes to the low noise, good corrosion resistance and good moisture performance of the products. The coil insulation is class H, greatly improving the reliability of the long-term operation; Compact structure, easy installation, stable performance and strong anti-short circuit ability; Temperature rise less than 70K, noise less than 75dB; Good insulation performance, small leakage currents.

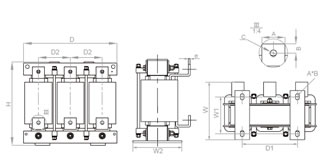

Dimensional Drawings

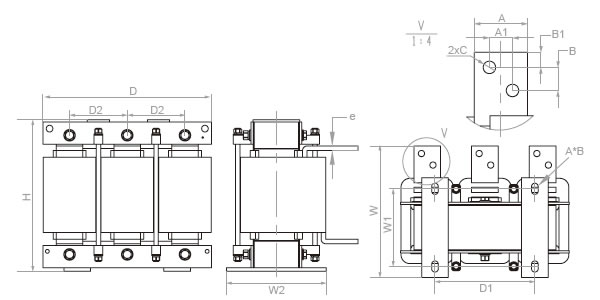

  • Picture E

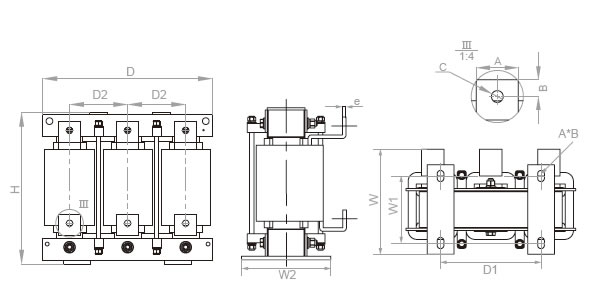

  • Picture G
NO. Power(KVA) Voltage (V) Rated current(A) Inductance value (mH) Insulation class Reactor type
Picture No. 		Product Specifications
D×H×W (mm) D1×W1(mm) a×b(mm) ∮c(mm) A×e (mm) Material Weight (Kg) Qty. Package code
1 110 660 110 0.46 H FBLA-0110-EISC-6423 G 300×250×280 200×250 12×20 11 20×5 Cu 40 1 G3
2 132 660 147 0.25 H FBLA-0147-EISC-6423 250×250×240 200×190 12×20 11 20×5 Cu 45 1 F3
3 200 660 200 0.25 H FBLA-0200-EISC-6423 E 420×300×350 250×300 15×25 11 20×5 Cu 100 1 K1
4 250 660 280 0.13 H FBLA-0280-EISC-6423 G 250×300×250 200×210 12×20 11 20×5 Cu 65 1 F3
5 400 660 380 0.13 H FBLA-0380-EISC-6423 E 330×400×340 250×300 15×25 11 40×5 Cu 130 1 I4
6 400 660 400 0.09 H FBLA-0400-EISC-6423 G 370×340×350 250×300 15×25 2- ∮11 50×5 Cu 120 1 J3
7 500 660 500 0.10 H FBLA-0500-EISC-6423 E 320×420×340 250×300 15×25 13 40×6 Cu 125 1 H5
8 500 660 560 0.07 H FBLA-0560-EISC-6423 G 370×350×350 250×300 15×25 2- ∮11 50×5 Cu 125 1 J3
9 630 660 630 0.09 H FBLA-0630-EISC-6423 E 405×480×350 250×300 15×25 2- ∮12 50×6 Cu 200 1 K5
10 200 1140 118 1.07 H FBLA-0118-EISC-6423 420×300×350 250×300 15×25 11 20×5 Cu 125 1 K1
11 250 1140 162 0.39 H FBLA-0162-EISC-6423 350×290×340 250×300 15×25 11 20×5 Cu 50 1 I4
12 400 1140 229 0.55 H FBLA-0229-EISC-6423 G 425×340×365 250×300 15×25 11 30×5 Cu 185 1 K2
13 400 1140 260 0.24 H FBLA-0260-EISC-6423A E 360×350×340 250×300 15×25 11 20×5 Cu 110 1 I3
14 500 1140 290 0.44 H FBLA-0290-EISC-6423 365×395×375 250×300 15×25 13 30×5 Cu 195 1 J4
15 630 1140 360 0.35 H FBLA-0360-EISC-6423 G 500×420×390 250×300 15×25 13 40×5 Cu 280 1 L6
16 630 1140 385 0.20 H FBLA-0385-EISC-6423 370×375×330 250×300 12×20 14 40×5 Cu 137 1 J4
17 630 1140 408 0.15 H FBLA-0408-EISC-6423A E 400×400×340 250×300 15×25 2- ∮13 50×5 Cu 135 　 K4
NO. Power(KVA) Voltage (V) Rated current(A) Inductance
value(mH) 		Insulation class Reactor type
Picture No. 		Product Specifications
D×H×W (mm) D1×W1(mm) a×b(mm) ∮c(mm) A×e (mm) Material Weight (Kg) Qty. Package code
1 500 660 448 0.08 H FBLO-0448-EISC-6423 E 320×450×340 250×300 15×25 14 40×5 Cu 110 1 I5
2 132 1140 86 0.73 H FBLO-0086-EISC-6423 320×290×340 250×300 15×25 11 20×5 Cu 60 1 H4
3 200 1140 130 0.49 H FBLO-0130-EISC-6423 320×310×340 250×300 12×20 11 20×5 Cu 80 1 H4
4 250 1140 162 0.39 H FBLO-0162-EISC-6423A 360×350×340 250×300 15×25 11 20×5 Cu 85 1 I3
5 400 1140 260 0.24 H FBLO-0260-EISC-6423 360×380×340 250×300 15×25 11 20×5 Cu 120 1 I4
6 400 1140 260 0.24 H FBLO-0260-EIWC-6423 360×260×455 300×400 12×20 11 20×5 Cu 120 1 I2
7 500 1140 324 0.19 H FBLO-0324-EISC-6423 320×420×365 250×300 15×25 13 30×5 Cu 150 1 I5
8 1000 1140 350 0.20 H FBLO-0350-EISC-6423C G 420×390×340 250×300 15×25 13 40×5 Cu 180 1 K3
9 1000 1140 350 0.04 H FBLO-0350-EISC-6423 E 315×320×332 250×300 12×20 14 40×5 Cu 70 1 H4
10 630 1140 408 0.15 H FBLO-0408-EISC-6423 400×440×340 250×300 15×25 2- ∮13 50×5 Cu 160 1 K4
NO. Power(KVA) Voltage (V) Rated current(A) Inductance
value(mH) 		Insulation class Reactor type
Picture No. 		Product Specifications
D×H×W (mm) D1×W1(mm) a×b(mm) ∮c(mm) A×e (mm) Material Weight (Kg) Qty. Package code
1 90 660 90 0.85 H FBLE-0090-EISC-6423 G 320×280×280 200×250 12×20 11 20×5 Cu 85 1 H3
2 110 660 110 0.69 H FBLE-0110-EISC-6423 320×320×280 200×250 12×20 11 20×5 Cu 90 1 H3
3 200 660 200 0.38 H FBLE-0200-EISC-6423 E 480×350×350 250×300 15×25 11 20×5 Cu 200 1 L1
4 630 660 315 0.25 H FBLE-0315-EISC-6423 520×435×370 250×300 15×25 11 30×5 Cu 245 1 L3
5 400 660 380 0.20 H FBLE-0380-EISC-6423 350×500×340 250×300 15×25 11 40×5 Cu 200 1 L6
6 500 660 500 0.24 H FBLE-0500-EISC-6423 485×500×435 250×360 15×25 13 40×6 Cu 370 1 L4
7 200 1140 118 2.13 H FBLE-0118-EISC-6423 480×440×340 250×300 15×25 11 20×5 Cu 260 1 L2
8 630 1140 180 1.40 H FBLE-0180-EISC-6423 G 550×500×340 250×300 15×25 11 20×5 Cu 350 1 M2
9 400 1140 229 1.10 H FBLE-0229-EISC-6423 G 550×500×380 250×300 15×25 11 25×5 Cu 410 1 M2
10 500 1140 290 0.87 H FBLE-0290-EISC-6423 E 545×510×465 250×360 15×25 13 30×5 Cu 450 1 M3
11 1000 1140 340 0.91 H FBLE-0340-EISC-6423 G 590×525×420 250×360 15×25 14 40×5 Cu 539 　 N2
Package Code
Code D W H Package Pic.
A1 160 330 250
A2 160 360 250
B1 180 330 250
B2 180 430 300
C1 220 330 260
C1 220 430 300
C2 220 500 320
D1 270 230 320
D2 270 270 350
D3 270 300 360
D4 270 360 300
D3 270 300 360
D5 270 360 440
D6 270 380 320
D7 270 430 320
D8 270 550 380
E1 300 230 320
E2 300 270 350
E3 300 300 380
E4 300 360 320
F1 330 270 340
F2 330 300 380
F3 330 330 400
G1 360 270 350
G2 360 300 380
G3 360 330 420
G4 360 360 440
H1 390 300 400
H2 390 330 400
H3 390 360 440
H4 390 430 500
H5 390 460 550
I1 420 300 380
I2 420 330 400
I3 420 430 550
I4 420 460 550
I5 420 500 610
J1 460 360 440
J2 460 380 460
J3 460 430 500
J4 460 480 550
K1 500 360 440
K2 500 430 500
K3 500 460 520
K4 500 500 600
K5 500 560 640
L1 600 430 500
L2 600 460 540
L3 600 500 540
L4 600 530 600
L5 600 560 640
L6 600 600 680
M1 630 560 620
M2 630 600 680
N1 680 500 580
N2 680 600 700
