Aluminium Resistor (Multiple Unit)

Aluminium Resistor (Multiple Unit)

Product Profile

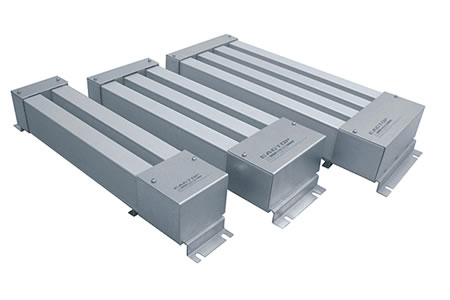

The aluminum resistor in the ARXU series is an improved version which seals the two end s of the traditional aluminum reactor by attaching stainless plate catches to the these two ends. Besides, supports are also attached to the two ends so as to protect the weak parts. In this way, the international protection reaches IP54.

Features
1. Electric Strength: AC 3000V 50Hz 5s
2. Insulation Resistance: DC1000V ≥100 MΩ
3. Rated Power: 200W-3000W

Range of Application
GB/T5729-1994 Fixed resistor used in electronic equipment

part 1: General Specification

Technical Parameters
Type Rated
Power(W)

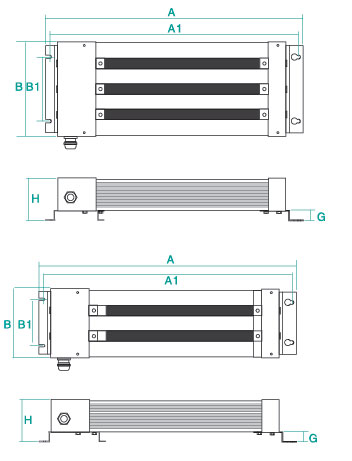

Dimension (mm) Connecting
Wire(mm)
Lead length
(mm)
Resistance
Range(Ω)
    A A1 B B1 G H
Single Unit 200 268 253 253 64 20 54 1.5 500 1Ω-10KΩ
300 318 318 303 64 20 54 1.5 500 1Ω-10KΩ
400 368 368 353 64 20 54 1.5 500 1Ω-10KΩ
500 438 438 423 64 20 54 1.5 500 1Ω-10KΩ
600 503 503 488 64 20 54 1.5 500 1Ω-10KΩ
Double Units 800 372 372 355 84 20 84 1.5 500 1Ω-10KΩ
1000 442 442 425 84 20 84 1.5 500 1Ω-10KΩ
1200 507 507 490 84 20 84 1.5 500 1Ω-10KΩ
Triple Units 1200 372 372 355 134 20 84 1.5 500 1Ω-10KΩ
1500 442 442 425 134 20 84 1.5 500 1Ω-10KΩ
1800 507 507 490 134 20 84 1.5 500 5Ω-10KΩ
Quadruple Units 1600 372 372 355 184 20 84 1.5 500 5Ω-10KΩ
2000 442 442 425 184 20 84 1.5 500 5Ω-10KΩ
2400 507 507 490 184 20 84 1.5 500 5Ω-10KΩ
Five Units 2000 372 372 355 234 20 84 1.5 500 5Ω-10KΩ
2500 442 442 425 234 20 84 1.5 500 5Ω-10KΩ
3000 507 507 490 234 20 84 1.5 500 5Ω-10KΩ
Identification Code of the Finish Product
RRXU 2K00 0032 9999M K M
Product Type Rated Power 50W-2000W
0020-20W
2K00-2KW
Resistance Value(ohm) (Ω)stands for resistance value in
the unit of ohm(s) 0R08-0.08Ω/
0032-32Ω/3K00-3KΩ
Product Features Resistance Tolerance
H=±3%
K=±10%
J=±5%
Connection
J= Lead

ARXU.2K00.0032.9999M (9999M stands for standard product 2KW/32 R ARXU)
ARXU.2K00.0032.6218A(9999M stands for “6218” customized non-standard product 2KW/32R ARXU)
