MKP DC-Link Film Capacitor

Applications
MKP DC–link film capacitor for general use is applied to solar inverters, wind power converters, SVG, APF, high voltage inverters and so on.

Standards
IEC 61071*(2007)
acc. to IEC 61071*(2007) (There is no internal protection device inside the capacitors.)

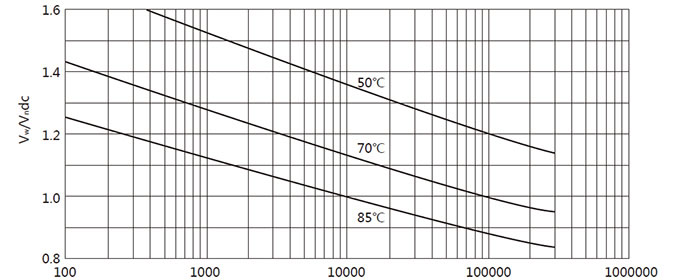

Life Expectancy Curve
Technical Parameters
Type of product DC-link series
Reference standard IEC 61071
Case Aluminium
Terminals T: internal thread, Z: internal stud
Base mounting position M12 or M16
Filling material Solid, based on vegetable oil, non PCB
Internal protection None
Rated voltage Un 600~1500V
Range of capacitance 160~7400uF
Tolerance of capacitance ±5%, ±10%
Insulation resistance ≥5000s (20 ℃ , 500V, 1min)
Hi-pot between terminals 1.5 Un(10s, 20 ℃ ±5 ℃ )
Hi-pot between terminals and case ≥3200VAC,50Hz/10s
Overvoltage 1.1UN(30% of on-load-dur.); 1.15UN(30min/day); 1.2UN (5min/day); 1.3UN (1min/day); 1.5UN(30ms every time, 1000times during the life of the capacitor)
Storage temperatures -40...+85 ℃
Limit temperatures -25...+85 ℃ (for Φ85/Φ86mm ); -25...+80 ℃ (for Φ116mm ); -25...+75 ℃ (for Φ136mm )
Dissipation factor tan δ0 <2x10-4
Altitude ≤2000 m
Fields of application DC support circuit for wind power inverter and solar inverter

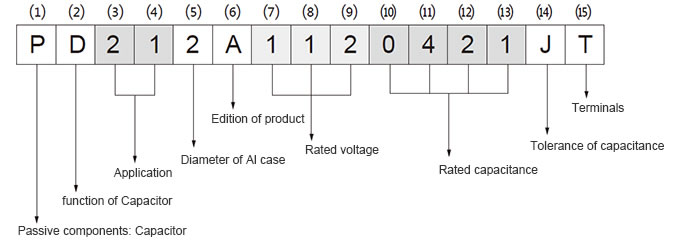

Coding Rule of Parts
Code Character Note
⑴ Internal code P: Passive components: capacitor
⑵ Function of capacitor A: Alternate capacitor, D: Direct capacitor
⑶⑷ Application 21: Means extra capacitance with high current;
43: Means maximum current
⑸ Diameter of Al Case 1=Φ75m , 2=Φ85, 3=Φ116mm , 4=Φ136mm , 5=Φ76mm , 6=Φ86mm , 7=Φ96mm , 8=Φ106mm , R= square capacitance
⑹ Version of product A: First version; B: Second version, etc; S: Special product
⑺⑻⑼ Rated voltage For examples: 062=6×102=600V, 112=11×102=1100V
⑽⑾⑿⒀ Rated capacitance (unit: μF) For examples: 0421=42×101=420μF, 1061=106×101=1060μF
⒁ Tolerance of capacitance J=±5% ； K=±10% ； M=±20%
⒂ Terminals T: Internal thread M6x10mm , Z: internal stud M8x20mm , J: integrated type

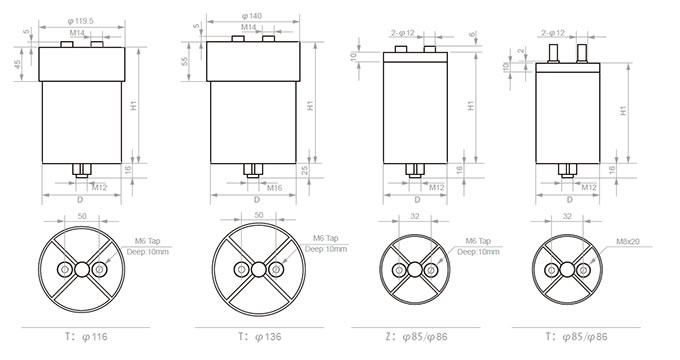

Outline Drawing
Ordering Code and Packing Units
PD21 Series 600V
UN 600V DC Us 900V Ur 100V
CN/uF Rs/mΩ Imax/A Î/kA Is/kA WN/Ws Le/nH D/mm H1/mm Stud/thread Ordering code
750 1.6 30 3.7 11 135 60 85/86 115 T:M6x10mm PD21*A0620751*T
1000 1.8 35 3.7 11 180 55 85/86 136 T:M6x10mm PD21*A0620013*T
1100 1.9 35 3.7 11 198 40 85/86 146 Z:M8x20mm PD21*A0620112*Z
1500 2.3 35 3.7 11 270 60 85/86 181 T:M6x10mm PD21*A0620152*T
1600 1.3 60 7.4 22 288 60 85/86 215 Z:M8x20mm PD21*A0620162*Z
2700 1.8 60 7.4 22 486 100 85/86 348 T:M6x10mm PD21*A0620272*T
2200 1.1 40 6.7 20 396 40 116 146 T:M6x10mm PD213A 0620222*T
2400 1.3 40 6.7 20 432 50 116 185 T:M6x10mm PD213A 0620242*T
2700 0.66 60 13.4 40 486 50 116 215 T:M6x10mm PD213A 0620272*T
3900 0.83 60 13.4 40 702 70 116 295 T:M6x10mm PD213A 0620392*T
5100 0.96 60 13.4 40 918 70 116 345 T:M6x10mm PD213A 0620512*T
5900 0.73 60 19.2 58 1062 70 136 295 T:M6x10mm PD214A 0620592*T
7400 0.84 60 19.2 58 1332 70 136 345 T:M6x10mm PD214A 0620742*T
PD43 Series 600V
UN 600V DC Us 900V Ur 100V
CN/uF Rs/mΩ Imax/A Î/kA Is/kA WN/Ws Le/nH D/mm H1/mm Stud/thread Ordering code
1080 1 60 7.4 22 194 40 85/86 155 Z:M8x20mm PD43*A0621081*Z
2000 1.4 60 7.4 22 360 60 85/86 252 T:M6x10mm PD43*A0620023*T
2000 0.51 80 13.7 41 360 40 116 165 T:M6x10mm PD433A 0620023*T
3000 0.53 100 21 62 540 50 116 230 T:M6x10mm PD433A 0620033*T
4000 0.58 100 28 83 720 70 116 295 T:M6x10mm PD433A 0620043*T
5000 0.72 100 20 60 900 70 116 345 T:M6x10mm PD433A 0620053*T
5600 0.55 120 30 90 1008 70 136 295 T:M6x10mm PD434A 0620562*T
7000 0.66 120 29 87 1260 70 136 345 T:M6x10mm PD434A 0620073*T
PD21 Series 700V
UN 700V DC Us 1050V Ur 200V
CN/uF Rs/mΩ Imax/A Î/kA Is/kA WN/Ws Le/nH D/mm H1/mm Stud/thread Ordering code
580 1.7 30 3.2 9.6 142 60 85/86 115 T:M6x10mm PD21*A0720581*T
750 2 35 3.2 9.6 184 55 85/86 136 T:M6x10mm PD21*A0720751*T
820 2.1 35 3.3 9.9 201 40 85/86 146 Z:M8x20mm PD21*A0720821*Z
1100 2.5 35 3.2 9.6 270 60 85/86 181 T:M6x10mm PD21*A0720112*T
1100 1.3 60 6.5 19.5 270 60 85/86 215 Z:M8x20mm PD21*A0720112*Z
2100 1.8 60 6.5 19.5 515 100 85/86 348 T:M6x10mm PD21*A0720212*T
1700 1.2 40 5.9 17.7 417 40 116 146 T:M6x10mm PD213A 0720172*T
1900 1.4 40 5.9 17.7 466 50 116 185 T:M6x10mm PD213A 0720192*T
2100 0.69 60 11.7 35.1 515 50 116 215 T:M6x10mm PD213A 0720212*T
3100 0.87 60 11.7 35.1 760 70 116 295 T:M6x10mm PD213A 0720212*T
3900 1 60 11.8 35 956 70 116 345 T:M6x10mm PD213A 0720392*T
4400 0.76 60 16.7 50.1 1078 70 136 295 T:M6x10mm PD214A 0720442*T
5500 0.88 60 16.7 50.1 1348 70 136 345 T:M6x10mm PD214A 0720552*T
PD43 Series 700V
UN 700V DC Us 1050V Ur 200V
CN/uF Rs/mΩ Imax/A Î/kA Is/kA WN/Ws Le/nH D/mm H1/mm Stud/thread Ordering code
800 1.1 60 6.4 19 198 40 85/86 155 Z:M8x20mm PD43*A0720082*Z
1460 0.54 80 11.7 35 358 40 116 165 T:M6x10mm PD433A 0721461*T
1500 1.5 60 6.4 19 368 60 85/86 252 T:M6x10mm PD43*A0720152*T
2190 0.55 100 17.6 53 537 50 116 230 T:M6x10mm PD433A 0722191*T
2920 0.59 100 23.4 70 715 70 116 295 T:M6x10mm PD433A 0722921*T
3700 0.79 100 18 54 907 70 116 345 T:M6x10mm PD433A 0720372*T
4200 0.61 120 30 90 1029 70 136 295 T:M6x10mm PD434A 0720422*T
5200 0.68 120 25 75 1274 70 136 345 T:M6x10mm PD434A 0720522*T
PD21 Series 900V
UN 900V DC Us 1350V Ur 200V
CN/uF Rs/mΩ Imax/A Î/kA Is/kA WN/Ws Le/nH D/mm H1/mm Stud/thread Ordering code
450 1.8 30 2.8 8.4 182 60 85/86 115 T:M6x10mm PD21*A0920451*T
550 2.1 35 3 10 223 55 85/86 136 T:M6x10mm PD21*A0920551*T
630 2.3 35 2.8 8.4 255 40 85/86 146 Z:M8x20mm PD21*A0920631*Z
820 2.7 35 2.9 8.7 332 60 85/86 181 T:M6x10mm PD21*A0920821*T
900 1.3 60 5.7 17.1 365 60 85/86 215 Z:M8x20mm PD21*A0920092*Z
1600 1.9 60 5.7 17.1 648 100 85/86 348 T:M6x10mm PD21*A0920162*T
1300 1.3 40 5.2 15.6 527 40 116 146 T:M6x10mm PD213A 0920132*T
1500 1.5 40 5.2 15.6 608 50 116 185 T:M6x10mm PD213A 0920152*T
1600 0.73 60 10.3 30.9 648 50 116 215 T:M6x10mm PD213A 0920162*T
2400 0.93 60 10.3 30.9 972 70 116 295 T:M6x10mm PD213A 0920242*T
3000 1.1 60 10.3 30.9 1215 70 116 345 T:M6x10mm PD213A 0920033*T
3300 0.8 60 14.6 43.8 1337 70 136 295 T:M6x10mm PD214A 0920332*T
4200 0.93 60 14.6 43.8 1701 70 136 345 T:M6x10mm PD214A 0920422*T
PD43 Series 900V
UN 900V DC Us 1350V Ur 200V
CN/uF Rs/mΩ Imax/A Î/kA Is/kA WN/Ws Le/nH D/mm H1/mm Stud/thread Ordering code
610 1.1 60 5.6 16.8 247 40 85/86 155 Z:M8x20mm PD43*A0920611*Z
1120 0.65 80 10.3 30.9 454 40 116 165 T:M6x10mm PD433A 0921121*T
1150 1.6 60 5.7 17.1 466 60 85/86 252 T:M6x10mm PD43*A0921151*T
1680 0.57 100 15.4 46.2 680 50 116 230 T:M6x10mm PD433A 0921681*T
2240 0.61 100 20.5 61.5 907 70 116 295 T:M6x10mm PD433A 0922241*T
2800 0.78 100 15.4 46.2 1134 70 116 345 T:M6x10mm PD433A 0920282*T
3200 0.57 120 30 90 1296 70 136 295 T:M6x10mm PD434A 0920322*T
4000 0.7 120 22 66 1620 70 136 345 T:M6x10mm PD434A 0920043*T
PD21 Series 1100V
UN 1100V DC Us 1650V Ur 250V
CN/uF Rs/mΩ Imax/A Î/kA Is/kA WN/Ws Le/nH D/mm H1/mm Stud/thread Ordering code
330 1.8 30 2.4 7.2 200 60 85/86 115 T:M6x10mm PD21*A1120331*T
420 2 40 2.5 15 254 55 85/86 136 T:M6x10mm PD21*A1120421*T
450 2.3 40 2.4 14.8 272 40 85/86 146 Z:M8x20mm PD21*A1120451*T
580 2.8 40 2.4 14.8 357 60 85/86 181 T:M6x10mm PD21*A1120591*T
650 1.3 60 4.8 14.4 393 60 85/86 215 Z:M8x20mm PD21*A1120651*Z
1100 2 60 4.8 14.4 666 100 85/86 348 T:M6x10mm PD21*A1120112*T
850 1.3 40 4.4 13.2 545 40 116 146 T:M6x10mm PD213A 1120092*T
1000 1.5 40 4.4 13.2 605 50 116 185 T:M6x10mm PD213A 1120013*T
1200 0.74 60 8.7 26.1 726 50 116 215 T:M6x10mm PD213A 1120122*T
1650 0.94 60 8.6 25.8 1029 70 116 295 T:M6x10mm PD213A 1120172*T
2050 1.1 60 8.7 26.1 1271 70 116 345 T:M6x10mm PD213A 1120212*T
2400 0.8 60 12.4 37.2 1452 70 136 295 T:M6x10mm PD214A 1120242*T
3000 0.93 60 12.4 37.2 1815 70 136 345 T:M6x10mm PD214A 1120033*T
PD43 Series 1100V
UN 1100V DC Us 1650V Ur 250V
CN/uF Rs/mΩ Imax/A Î/kA Is/kA WN/Ws Le/nH D/mm H1/mm Stud/thread Ordering code
420 1 60 4.5 15.2 254 40 85/86 155 T:M6x10mm PD43*A1120421*T
450 1.1 60 4.8 14.4 272 45 85/86 155 T:M6x10mm PD43*A1120451*T
800 0.85 80 8.6 25.8 484 40 116 165 T:M6x10mm PD433A 1120082*T
830 1.7 60 4.8 14.4 502 60 85/86 252 T:M6x10mm PD43*A1120831*T
1200 0.6 100 13 39 726 50 116 230 T:M6x10mm PD433A 1120122*T
1600 0.63 100 17.2 51.6 968 70 116 295 T:M6x10mm PD433A 1120162*T
2000 0.82 100 12.9 38.7 1210 70 116 345 T:M6x10mm PD433A 1120023*T
2300 0.59 120 24.8 74.4 1392 70 136 295 T:M6x10mm PD434A 1120232*T
2900 0.73 120 18.7 56.1 1755 70 136 345 T:M6x10mm PD434A 1120292*T
PD21 Series 1300V
UN 1300V DC Us 1950V Ur 300V
CN/uF Rs/mΩ Imax/A Î/kA Is/kA WN/Ws Le/nH D/mm H1/mm Stud/thread Ordering code
210 1.8 30 2 6 177 60 85/86 115 T:M6x10mm PD21*A1320211*T
270 2.5 40 2 10 228 55 85/86 136 T:M6x10mm PD21*A1320271*T
300 2.6 40 2 10 254 40 85/86 146 T:M6x10mm PD21*A1320032*T
390 3.2 40 2 10 330 60 85/86 181 T:M6x10mm PD21*A1320391*T
420 1.5 60 4 12 355 60 85/86 215 Z:M8x20mm PD21*A1320421*Z
750 2.3 60 3.9 11.7 634 100 85/86 348 T:M6x10mm PD21*A1320751*T
600 1.6 40 3.5 10.5 507 40 116 146 T:M6x10mm PD213A 1320062*T
700 1.8 40 3.5 10.5 592 50 116 185 T:M6x10mm PD213A 1320072*T
750 0.82 60 7 21 634 50 116 215 T:M6x10mm PD213A 1320751*T
1100 1 60 7 21 930 70 116 295 T:M6x10mm PD213A 1320112*T
1600 0.88 60 10 30 1352 70 136 295 T:M6x10mm PD214A 1320162*T
2000 1 60 10.1 30.3 1690 70 136 345 T:M6x10mm PD214A 1320023*T
PD43 Series 1300V
UN 1300V DC Us 1950V Ur 300V
CN/uF Rs/mΩ Imax/A Î/kA Is/kA WN/Ws Le/nH D/mm H1/mm Stud/thread Ordering code
300 1.2 60 4 12 254 40 85/86 155 T:M6x10mm PD43*A1320032*T
545 0.77 80 7.2 21.6 461 40 116 165 T:M6x10mm PD433A 1325450*T
560 1.8 60 4 12 473 60 85/86 252 T:M6x10mm PD43*A1320561*T
820 0.6 100 10.9 32.7 693 50 116 230 T:M6x10mm PD433A 1320821*T
1090 0.63 100 14.5 43.5 946 60 116 295 T:M6x10mm PD433A 1321091*T
1370 0.83 100 10.9 32.7 1158 70 116 345 T:M6x10mm PD433A 1321371*T
1560 0.59 120 20.7 62.1 1318 70 136 295 T:M6x10mm PD434A 1321561*T
1950 0.74 120 15.5 45.5 1648 70 136 345 T:M6x10mm PD434A 1321951*T
