Stainless Steel Resistor Box
Stainless Steel Resistor Box
This product has been discontinued and removed from our shelves.

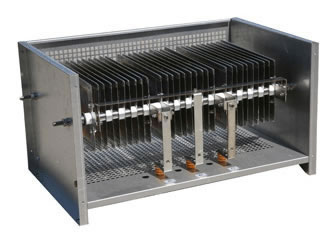

Stainless steel resistor box made by Eagtop, an electrical component supplier and manufacturer in China, is super in anticorrosion and anti-shock performance. It could be applied to electromotor starting, inverter braking and more.
Parameters of Stainless Steel Resistor Box
Power Range: 500kW~200kW
Voltage Range: 0.5KV-4KV
Resistance Range: 0.01R-100R
Dielectric Strength: AC2.5KV-5KV/1min, 50Hz
IP Protection: IP00-IP23
Insulated Resistance: DC 1000V ≥100MΩ
Vibration: 0.5g
Temperature Rise: 375℃
Temperature Coefficient: 40~1400ppm/℃
Resistor Material: Cr20Ni80/SUS 304/SUS 316/AK 18SR
Storage Temperature: -40℃~50℃
