Wirewound Resistor

This product has been discontinued and removed from our shelves.

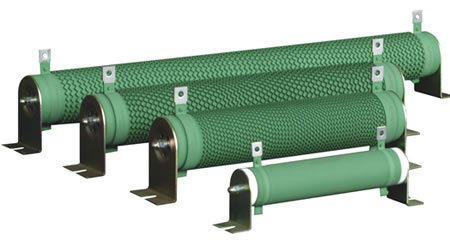

Eagtop Wirewound resistor is made of a ceramic tube with flat, waved alloy resistance wirewound on it. It is painted with a fireproof, heat-resistant coat with which Wirewound resistor could be applied in high voltage applications for inverter brake, discharge of equipment, and automated control.

Parameters of Wirewound Resistor
Rated Power Range: 50W~2500W
Rated Voltage Range: 0.5KV-10KV
Resistant Voltage: AC2.5KV~20KV, 1Min, 50Hz
Resistance Range: 1R~10KR
Insulated Resistance: DC1000V ≥100MΩ
Vibration: 1g
Rated Temperature Rise: 375℃
Overload capacity: 10 times 5S
Temperature Drift: 40~400ppm/℃
Resistance Material: 0Cr25AL5/ Cr20Ni80
IP Class: IP00
Storage temperature: -40℃~50℃
Standard: GB/T 5729

Wirewound Resistor

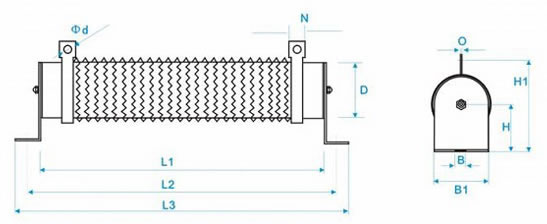

Rated power (w) Dimension(mm)
L1(±2) L2(±5) L3(±3) D(±2) B B1 H H1(±3) N ¢d O
50 102 124 146 28 6.5 28 28 61 10 4.5 1.2
60 102 124 146 28 6.5 28 28 61 10 4.5 1.2
80 152 174 196 28 6.5 28 28 61 10 4.5 1.2
100 182 204 226 28 6.5 28 28 61 10 4.5 1.2
120 182 204 226 28 6.5 28 28 61 10 4.5 1.2
150 195 217 239 40 8 40 41 81 12 5.5 2.0
200 195 217 239 40 8 40 41 81 12 5.5 2.0
300 282 304 326 40 8 40 41 81 12 5.5 2.0
400 282 304 326 40 8 40 41 81 12 5.5 2.0
500 316 338 360 50 8 50 45 101 16 6 2.0
600 345 367 389 40 8 40 41 81 12 5.5 2.0
750 316 338 360 50 8 50 45 101 16 6 2.0
1000 300 325 350 60 8.5 60 60 119 16 6 2.0
1200 415 440 465 60 8.5 60 60 119 16 6 2.0
1500 415 440 465 60 8.5 60 60 119 16 6 2.0
2000 510 535 560 60 8.5 60 60 119 16 6 2.0
2500 600 625 650 60 8.5 60 60 119 16 6 2.0
Product Identification Code:
Product Type
RXHG Type
      Rated Power
     50W-2500W
Resistance Value(ohm)
(Ω) inedicates resistance
value in units of ohms
   Resistance Tolerance
   H=±3%
   K=±10%
   J=±5%
Connection
M=Terminal
J=Lead
