- Sine Wave FilterThis sine wave filter transforms the PWM output signal of the electro motor into a smooth sine wave of the low residual ripple voltage so as to prevent the damage to the winding ...
-
- Three-Phase Input Filter This three-phase input filter is characterized by favorable interference rejection capability. It is mainly used in the data processing system, telecommunication ...
Filter
This product has been discontinued and removed from our shelves.

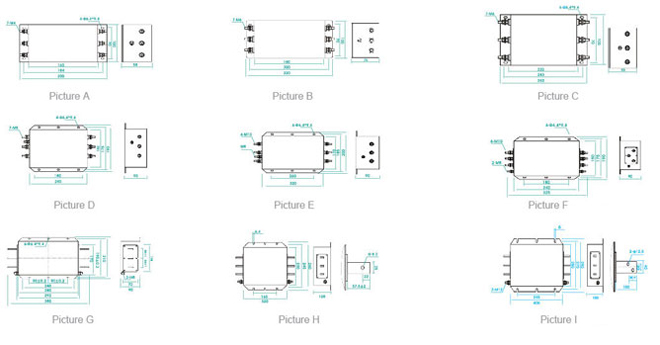

Three-phase Input FilterType | Rated Current (A) | Adaptive Power (KW) | Boundary Dimension (MM) | Installation Dimension | Notes | Weight (kg) |
NFI-005 | 5 | 0.75-1.5 | 184*60 | Picture A (product appearance) | 0.6 | |
NFI-010 | 10 | 2.2-4 | 200*86*58 | 184*60 | Picture B (product appearance) | 1.25 |
NFI-020 | 20 | 5.5-7.5 | 260*100*90 | 243*70 | Picture C | 2.5 |
NFI-036 | 36 | 11-15 | 2.6 | |||
NFI-050 | 50 | 18.5-22 | 2.85 | |||
NFI-065 | 65 | 30 | 240*190*90 | 180*175 | Picture D | 4.6 |
NFI-080 | 80 | 37 | 320*200*90 | 260*185 | Picture E | 6.6 |
NFI-100 | 100 | 45 | 7 | |||
NFI-150 | 150 | 55-75 | 7.8 | |||
NFI-200 | 200 | 90 | 325*190*90 | 240*175 | Picture F | 5.15 |
NFI-250 | 250 | 110-132 | 380*210*90 | 180*196 | Picture G | 7.5 |
NFI-300 | 300 | 160 | 7.5 | |||
NFI-400 | 400 | 200 | 320*260*128 | 165*245 | Picture H | 14 |
NFI-600 | 600 | 215-250 | 14.5 | |||
NFI-900 | 900 | 315 | 400*290*150 | 245*270 | Picture I | 20 |
NFI-1200 | 1200 | 450 | 23 |
Type | Rated Current (A) | Adaptive Power (kw) | Volume Size (mm) | Installation Dimension | Notes | Weight (kg) |
NFO-005 | 5 | 0.75-1.5 | 200*86*58 | 184*60 | Picture A (product appearance) | 0.75 |
NFO-010 | 10 | 2.2-4 | 200*100*75 | 200*70 | Picture B | 1.25 |
NFO-020 | 20 | 5.5-7.5 | 1.3 | |||
NFO-036 | 36 | 11-15 | 260*100*90 | 243*70 | Picture C | 2.3 |
NFO-050 | 50 | 18.5-22 | 2.3 | |||
NFO-065 | 65 | 30 | 2.73 | |||
NFO-080 | 80 | 37 | 3.1 | |||
NFO-100 | 100 | 45 | 3.34 | |||
NFO-150 | 150 | 55-75 | 240*190*90 | 180*175 | Picture E | 5 |
NFO-200 | 200 | 90 | 4.75 | |||
NFO-250 | 250 | 110-132 | 380*210*90 | 180*196 | Picture G | 7.2 |
NFO-300 | 300 | 160 | 13.25 | |||
NFO-400 | 400 | 200 | 320*260*128 | 165*245 | Picture H | 17 |
NFO-600 | 600 | 215-250 | 19 | |||
NFO-900 | 900 | 315 | 400*290*150 | 245*270 | Picture I | 22 |
NFO-1200 | 1200 | 450 | 26 |
